Unicorn





Introduction



The Unicorn is a integrated surveillance platform with video input, storage, transfer and device management functions designed specifically for digital surveillance applications. The Unicorn has adopted audio/video compression and decompression, embedded system, storage, network, and technologies and it is suitable for security surveillance scenarios such as residential areas, buildings, campus, hotels, and shopping malls etc.









Key Features



Stability: Linux OS, dual-BIOS, redundant power, two-server hot standby



Compatibility: Third-party IP Cameras supported with standard ONVIF and can support and manage up to 60 standalone NVRs



Access: Browser/Server, Client/Server and mobile clients (both iOS and Android)



Connection: 1000 device connections, up to 2000 channels of high-definition network videos



Management: Unified management of NVR, IPC, decoder, network keyboard, cloud devices, alarm control panel and door access control, support devices configuration import/export

Storage: Max 16 hard disks and 2 disk enclosures; expandable up to 48 disks with 384TB storage, recording backup, IPSAN storage



Decoding: Max 16×1080P decoding outputs in three screens, expandable up to 112×1080P in 15 screens with 2 decoding cards inserted

Service: Live video view, recording, playback, sequence, video wall, E-map, two-way audio, and alarm plan



Reliability: Support of HTTPS, 802.1x authentication, ARP protection, Telnet enabling/disabling, network fault tolerance, multi-IP configuration, load balancing, secure password and IP address filtering

Specifications





Camera



IPC6258SR-X22DUP





Sensor

1/1.3", progressive scan, 8 Megapixel, CMOS

Lens

6.5~ 143 mm (22x optical zoom) , AF automatic focusing and motorized zoom lens





DORI Distance

Lens

Detect(m)

Observe(m)

Recognize(m)

Identify(m)

6.5mm

146.3

58.5

29.3

14.6

143mm

3217.5

1287

643.5

321.8

Angle of View (H)

58.9°~3.4°

Angle of View (V)

35.2°~1.9°

Angle of View (O)

72.5°~4.1°

Shutter

Auto/Manual, shutter time: 1 ~ 1/100000 s



Minimum Illumination

Colour: 0.01 lux (F1.5,AGC ON) B/W: 0.001 lux (AGC ON)              0 lux with IR

Iris

Auto/Manual, F1.5 ~ F3.4

Day/Night

IR-cut filter with auto switch (ICR)

Digital noise reduction

2D/3D DNR

S/N

>55 dB

IR Range

UP to 200m (656ft)

Defog

Digital Defog

WDR

120dB

Video

Video Compression

Ultra 265,H.265, H.264, MJPEG

H.264 code profile

Baseline profile, Main Profile, High Profile



Frame Rate

Main Stream: 8MP (3840 × 2160): Max.30fps, 2MP (1920×1080)@30fps Sub Stream:2MP(1920×1080) : Max. 25fps

Third Stream: D1 (720×576): Max. 20fps

HLC

Supported

BLC

Supported

EIS

Supported

OSD

Up to 8 OSDs

Privacy Mask

Up to 24 areas

ROI

Up to 8 areas

Motion Detection

Up to 4 areas


Item

Unicorn



Main Processor

Intel(R) 8-core CPU 2.0GHz can support up to 2 processing Units



Memory

48GB DDR4



Motherboard

FCBGA1170 Socket





Power supply

100-240 VAC (with power on/off switch)

Dual-power redundancy





Network

4×10M/100M/1000M Base-T adaptive Ethernet interfaces

2×1000M SFP optical interfaces IEEE 802.3ab standard





USB

4×USB3.0



HDMI

2×HDMI



VGA

1×VGA



Serial

RS-232 (RJ45), 1×RS-485 (RJ45)



Alarm input/output

24×alarm inputs, 8×alarm outputs



Power output

12 V DC





Buzzer





          Support 3 Industrial                   Expansion Interface

eSATA interface 2×miniSAS interfaces

2×decoding cards





Power consumption

220vac ≤ 50W (not including HDD)

220vac≤ 165W (including HDD)





  Network Protocol

TCP/IP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, 802.1x, SNMP, QoS, Secured open source/proprietary with stacked licenses



Operating temperature

-10°C to 55°C (14°F to 131°F)



Operating humidity

10% to 90% (noncondensing)



Weight

10.0 Kg



Dimensions

(D×W×H)

Height: 3U, support mounting in standard 19" cabinet

477.1 mm × 481.6 mm × 130.5 mm (18.8''×19''×5.1'') (including front panel)



Chassis

Rack Type

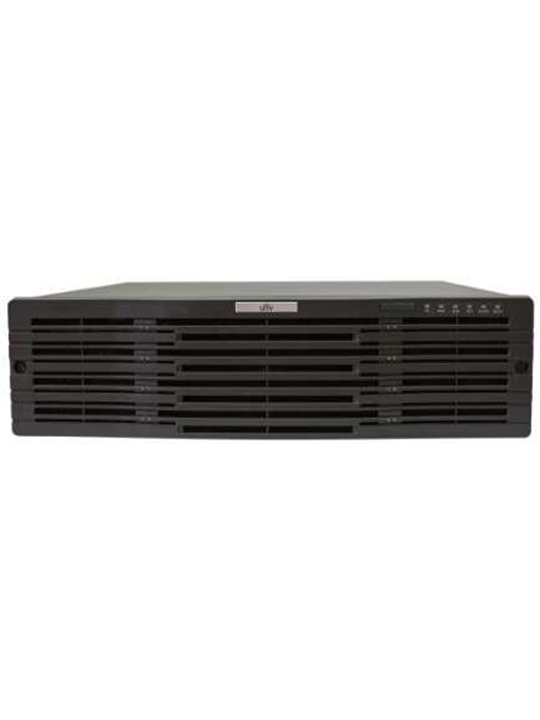

Appearance

 Dimensions
