Portable Surveillance Trailer VTS1200B-C
Product Feature:
1. 4*450W solar panels
2. 6*150Ah/8*150Ah/8*200Ah gel batteries,DC24V/48V system
3. 1*PTZ camera,3*bullet camera
4. Optional 6 to 9 meters manual/electric/ hydraulic mast
5. Dual axle trailer with Australia/ Europe/North America standard
Tower Dimensions
| Length: | 4470mm |
| Width: | 2030mm |
| Height: | 2900mm |
| Weight: | 1840kg |
Equipment Details
| Trailer Type: | Dual Axle |
| Tire and Rim Size: | 15" |
| Stabalizer Supports: |
4xManual |
| Drawbar: |
A Frame |
| Tow Hitch: |
50mm Ball/ 70mm Ring |
|
Mud Guard/ Wheel Chock: |
Special Design |
|
Kipor 5kva Diesel Generator: |
Optional |
Surveillance Fixture Details
|
Camera Type: |
Digital Camera |
|
Camera Style: |
PTZ Camera, Bullet Camera |
|
PTZ: |
2MP HD, 30×optical zoom,IR150m, 360° view |
| Bullet Camera: | 3MP HD,IR50m |
|
NVR: |
8-ch IP Video input 1-ch Audio input 2*3TB HDDs |
|
Mast Raise/ Extension: |
Manual/Electric/ Hydraulic |
| Mast Height(m): |
Optional |
| Mast Rotation: |
360 Degrees |
| Wind Rating Speed | 100km/h |
| Coil Cable: |
1*cat5e+3*AWG13 |

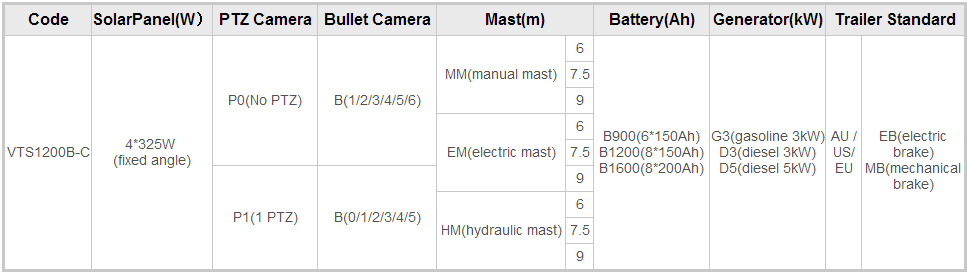

Selection Table:
Order Demonstration:
